Creat project

To create a project with DSPICE, follow these steps

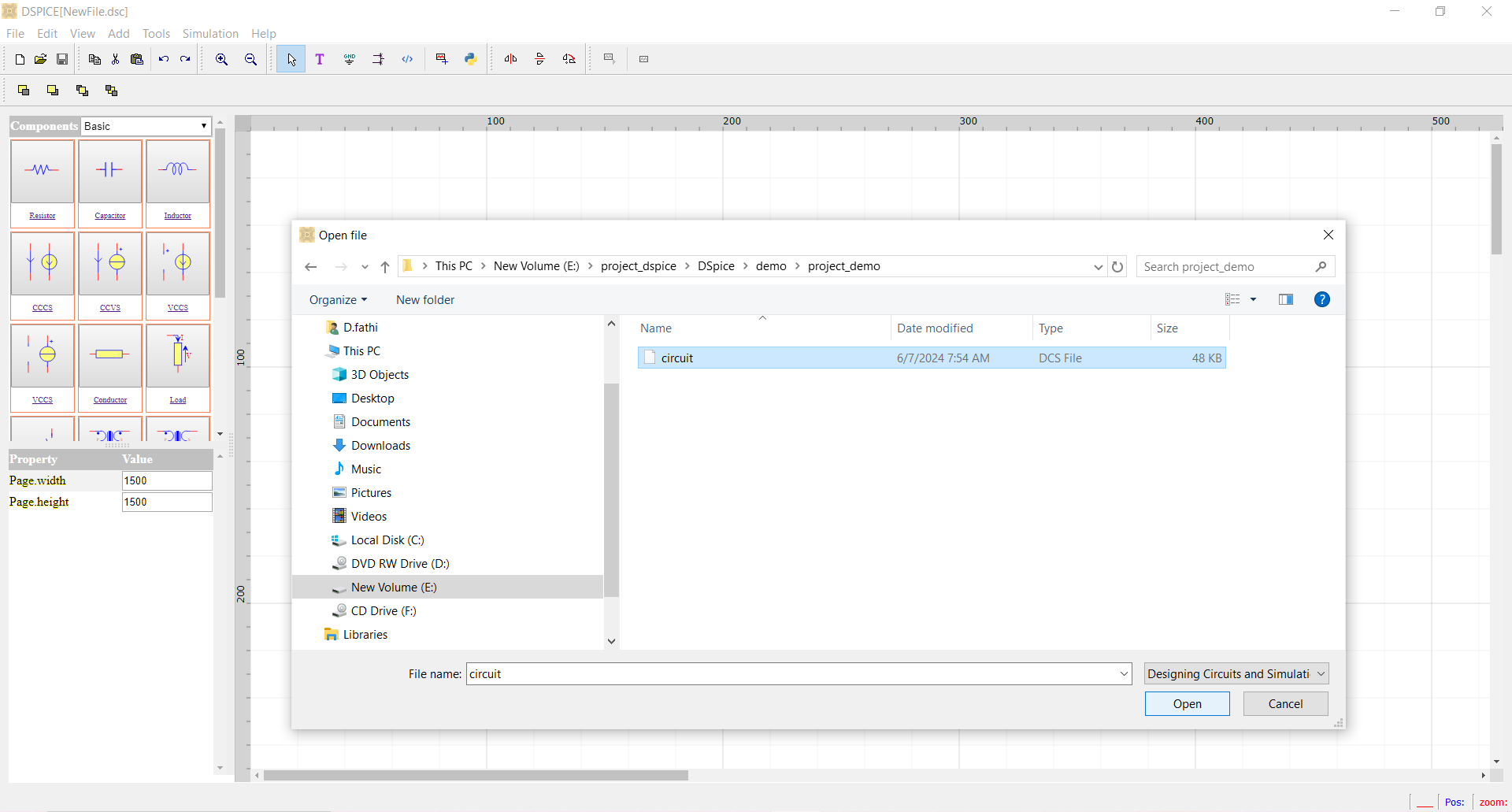

  • Step 1 Open the file with dspice

_images/step_a.png

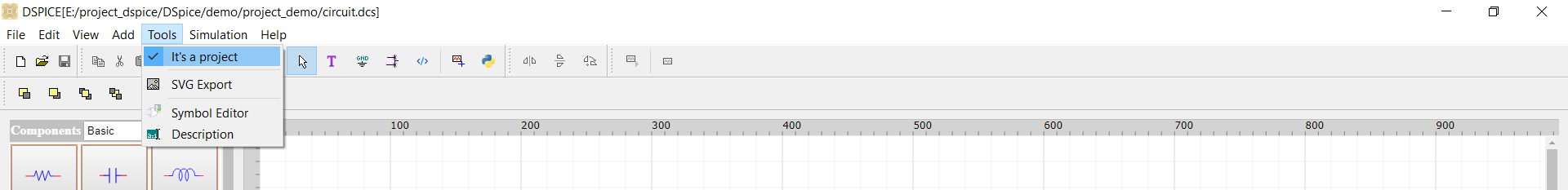

  • Step 2 Select “it’s Project” in the menu item

_images/step_b.png

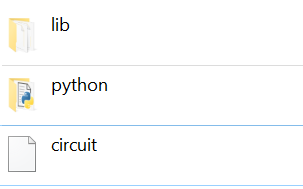

  • Step 3 Add two folders (python and lib) in the file directory

_images/step_c.png

Note

  • In the python folder, you can add python type files for circuit analysis with ng (ngspice).

  • In the lib folder you can add new symbols by symbol editor with spice models.
